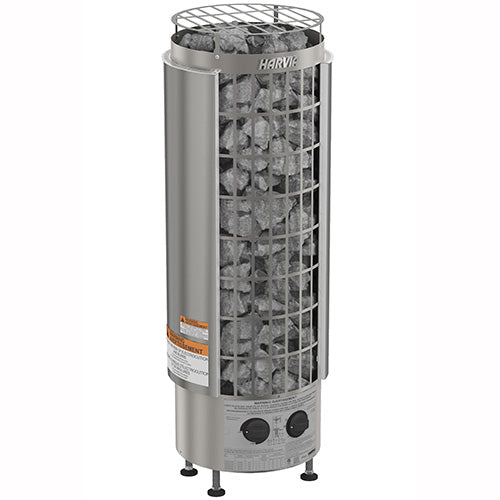

The Harvia Cilindro PC60E Electric Sauna Heater delivers authentic Finnish sauna performance with a modern cylindrical design. Its tall stone column holds a large volume of sauna stones, creating rich heat and excellent steam generation for a traditional sauna experience.
The heater’s grate-style outer shell allows bathers to control the type of steam produced. Pouring water along the side of the heater produces softer steam, while pouring water onto the top of the stone column creates sharper, more intense steam bursts.
Built with durable stainless steel construction, the Cilindro PC60E is designed to withstand high temperatures and humidity while maintaining a sleek and modern appearance.
This model uses an external Xenio control system for precise temperature management and sauna operation.
Designed and manufactured in Finland, Harvia heaters combine authentic sauna tradition with modern engineering.
Heating Performance
The Harvia Cilindro PC60E provides 6.0kW of heating power, making it ideal for sauna rooms ranging from 141 to 294 cubic feet.
Industrial-grade heating elements ensure fast warm-up times and consistent heat distribution throughout the sauna.
The heater requires 200 pounds of sauna stones, which absorb heat from the elements and gradually radiate warmth throughout the sauna room. Pouring water over the heated stones produces löyly, the traditional Finnish sauna steam.
Key Features
- Side-wall or corner of room install
- Stainless steel construction
- 6kW
- For sauna rooms from 141 to 294 cu. ft.
- Requires a minimum of 200lbs of stones (5 boxes-AC3000)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- Stainless steel elements
- Direct rock-to-heating element contact
- Industrial grade, serviceable heating elements
- Designed, engineered, and made in Finland
- Dimensions: 14"W (355mm) x 13"D (330mm) x 40"H (1016mm)
- Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)
What's Included
- Sauna Heater
- Temperature Sensor
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Stone Requirements
The Harvia Cilindro PC60E requires 200 lbs of sauna stones for proper operation.
Recommended configuration:
5 boxes of 44 lb sauna stones (5–10 cm)
Sauna stones absorb heat from the heating elements and gradually release warmth into the sauna room. They also allow bathers to pour water onto the heater to produce traditional sauna steam.
Because natural stones vary in shape and size, purchasing an additional box of stones is recommended for optimal stone selection and heat distribution.
(Sauna stones sold separately.)
Compatible Controls & Accessories
This heater requires an external control system.
Compatible control:
Harvia Xenio CX30-U1-U3-XW Control
(Control sold separately.)
Installation
The Cilindro PC60E offers flexible installation options:
• Wall-side installation
• Corner placement
Its vertical cylindrical design provides a large stone capacity while maintaining a compact footprint.
Product Specifications
| SKU / Model | HPCS6U1H / Cilindro PC60E |
| Series | Harvia Cilindro |
| Type | Heater |
| Color / Finish | Stainless Steel |
| Construction Material | Stainless Steel |
| Output | 6.0kW |
| Wattage | 6000.0W |
| Voltage | 240VAC |
| Amperage | 25 |
| Phase | 1PH |
| Breaker Requirement | 30A |
| Room Volume | 141-294 CU. FT. |
| Stone Requirement | 200 lbs |
| Maximum Temperature | 194 F |
| Dimensions (W x D x H) | 14"W (360mm) x 13"D (340mm) x 40"H (1010mm) |
| Width | 14" (360mm) |
| Depth | 13" (340mm) |
| Height | 40" (1010mm) |
| Product Weight | 35 lbs |
| Installation Type | Wall or Floor-Mount |
| Certifications | ETL |
Technical Documents
| Installation & Operation Manual | Download Manual (PDF) |
| Data Sheet | Download Data Sheet (PDF) |
| Warranty | Download Warranty (PDF) |
Why Choose the Harvia Cilindro PC60E?
• Large 200 lb stone capacity for superior steam production
• Powerful 6kW heating output for medium sauna rooms
• Adjustable steam intensity depending on where water is poured
• Durable stainless steel construction
• Compatible with Harvia Xenio smart controls
• Designed and manufactured in Finland
• Certified for safety and performance
